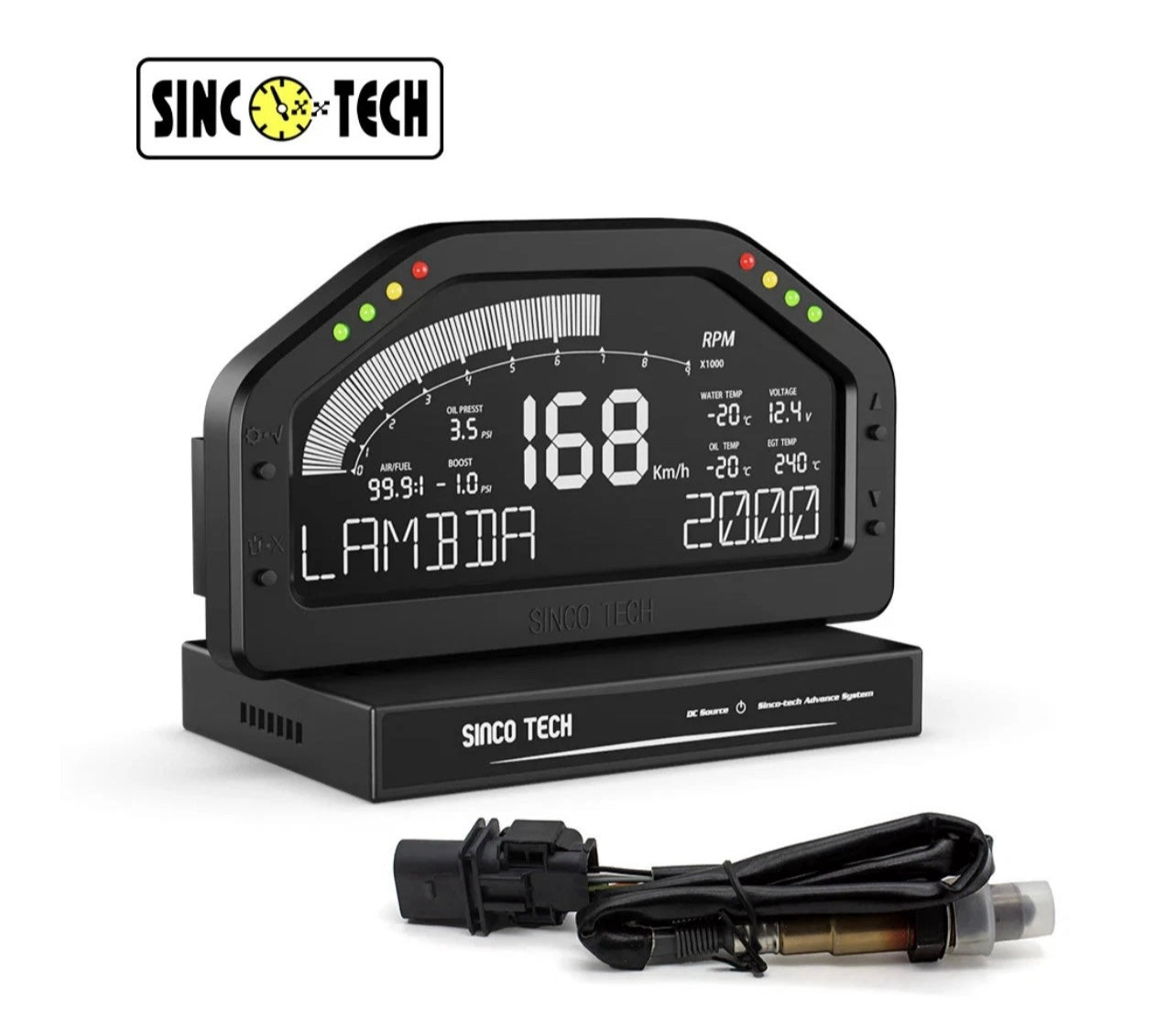

SincoTech Wideband 7-Colour Multifunctional Black Racing Dashboard With Sensor
Brand SINCO TECH
Model DO926WB
Display Digital
Size 6.5 inch
Language English
Operating Voltage 9V-16V
Application All 12v Vehicle
Type : Wide Band
Parameters and Range Table
Parameters
Range
Parameters
Range
Speed
0~255km/h;0~60mph
Water Temperature
0~150℃或0~300℉
RPM
0~9000 RPM
Exhaust Gas Temp.
0~1,300℃或0~2400℉
Oil Pressure
0~150PSI或0~10BAR
Lambada(λ)
0.00~20.00
Boost
-15~45PSI或-1~3BAR
Oxygen
0.00~100.00
AFR
20~10:1或99.9~0:1
Volt
10~16V
Oil Temperature
0~150℃或0~300℉
Clock
24H
Functions Display
RPM
Speed
Oil Pressure
Air Fuel Ratio
Boost
WaterTemp
Voltage
Oil Temperature
Exhaust Temperature
Multi-purpose Display Area
There are total 10 menu settings:
SET LANGUAGE
SET DATE
SET TIME
SET UNIT
SET COLOR
SET DIMMER
SET LED
SET ALARM
SET CYLINDER
SET SPEED CAL (speed calibration)
Alarm Setting
SPEED, TACHO, WATERTEMP, OIL.TEMP, OIL PRESSURE, BOOST, VOLT
Dimension
186mm*102mm*22mm

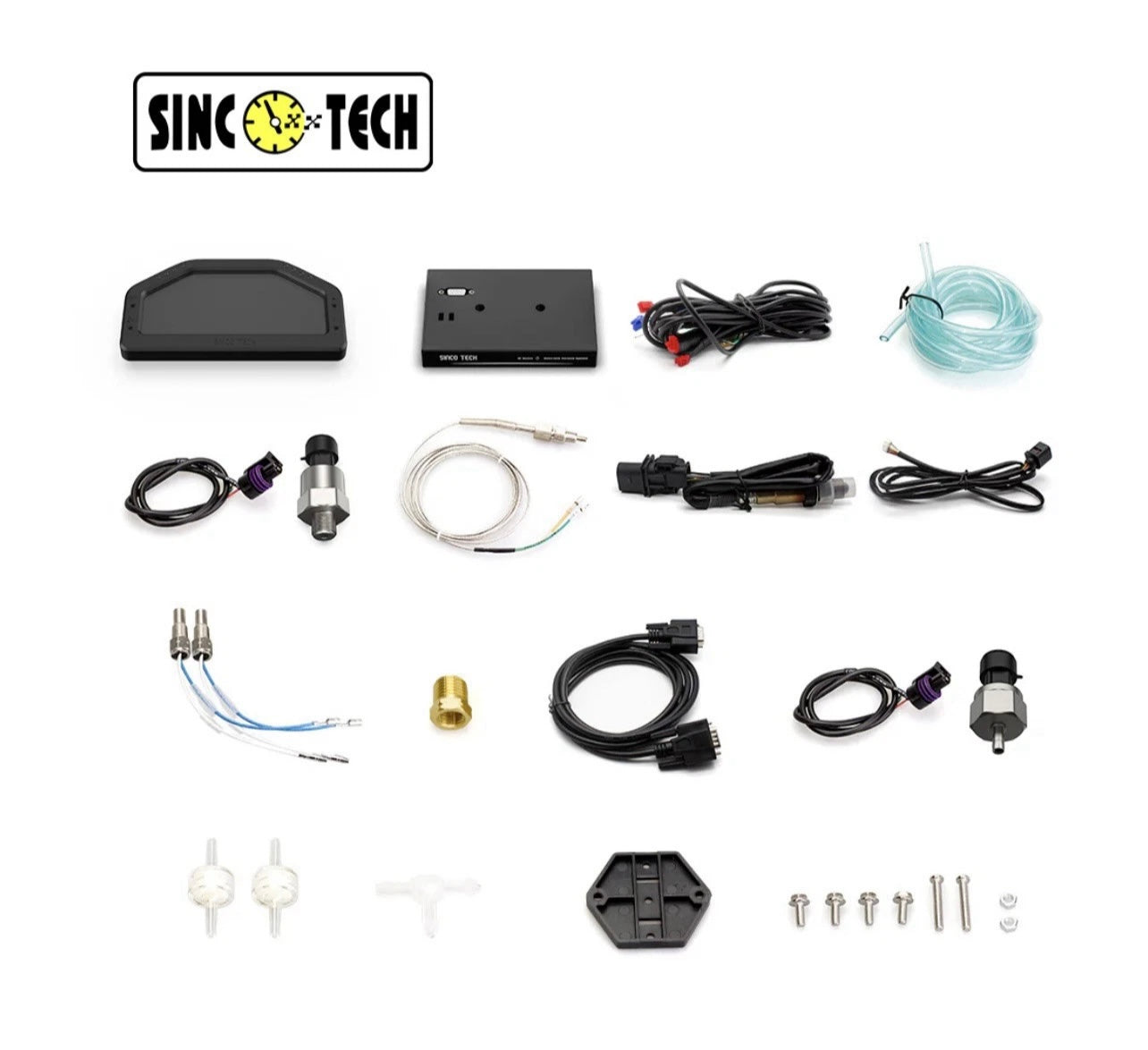

Parts List
Display Monitor
The Data Processing Unit(DPU)
Sensor Connection Wire Bundle
Oil Pressure Sensor With Wire
Data Line Between Monitor&DPU
Exhaust Temperature Sensor
Boost Pipe
Boost Sensor With Wire
Water/Oil Temperature Sensor
Exhaust Temperature Adapter
Boost Pipe Air Filter
Boost Pipe T-Fitting
DPU Installation Panel
Installation Screws
Wide Band Oxygen Sensor and wiring .
Wide Band Oxygen Version Descriptions
1.When the monitor is turned on, it will automatically communicate with the DPU. Once the DPU detects a wide band oxygen signal, the screen will automatically display the wide band oxygen version; If no wide band oxygen signal is detected, the screen will automatically display the narrow band oxygen version.
Under Wide Band oxygen version, the "air-fuel ratio" parameter on the screen displays the air-fuel ratio data detected by the wide oxygen sensor, with the display range of 0.0~99.9:1. At the same time, two additional parameters will appear in the multi-function display area at the bottom: LAMBDA(λ) and OXYGEN (the percentage of oxygen content).
Under Narrow Band oxygen version: When the system does not detect a wide band oxygen signal, the "air-fuel ratio" parameter on the screen displays the air-fuel ratio data of the narrow band oxygen sensor, and the display range is 20~10:1.
2.When the wide oxygen sensor is working, the controller will monitor its status at all times. Once an error is found, the controller will stop monitoring the wide oxygen sensor and display the error code “ERR xx”in the multi-function display area at the bottom of the screen.
(“xx” represents the specific error code. For example, when working normally, unplug the sensor wiring, and the instrument displays “Err 7F”)
3.When the wide oxygen sensor starts to work, there is a pre-heating process, about 1-2 minutes. At this time, the air fuel ratio on the screen will display 0.00, which is a normal display. When the sensor enters the normal state, the correct air fuel ratio value will be displayed.
